Tiefpassfilter

Tiefpassfilter (Low Pass Filter)

Tiefpasspassfilter (TPF) eignen sich z.B. zur effektiven Aussperrung von Frequenzbereichen in Kommunikations- und Funknetzen zur Bandbreitenbegrenzung bei Empfangs- und Sendeanwendungen, Unterdrückung von Störsignalen, Oberwellenunterdrückung bei Funkanwendungen uvm.

Die Tiefpassfilter werden nach Ihrer Spezifikation gefertigt und sind standardmäßig in einem kompakten Metallgehäuse mit Montagehalter untergebracht. Durch die spezielle Gehäusekonstruktion wird ein hohes Schirmungsmaß erreicht.


Produktmerkmale:
-hohe Sperrdämpfung 40dB, 70dB oder nach Ihrer Vorgabe
-geringe Durchgangsdämpfung
-hohe Rückflussdämpfung (hohe Anpassung)
-exakter Werksabgleich
-hohe thermische und mechanische Stabilität
-Wobbelausdruck im Lieferumfang
-Anschlüsse nach Kundenspezifikation (F, IEC, 3,5/12, N, SMA, BNC, TNC etc.)
-hohes Schirmungsmaß durch eine spezielle Gehäusekonstruktion
-kompaktes Metallgehäuse mit Montagehalter
-Impedanz 50 oder 75 Ohm

Für ein Angebot sind folgende Daten erforderlich:

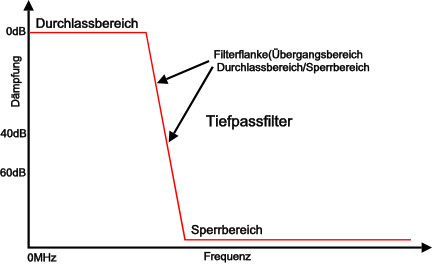

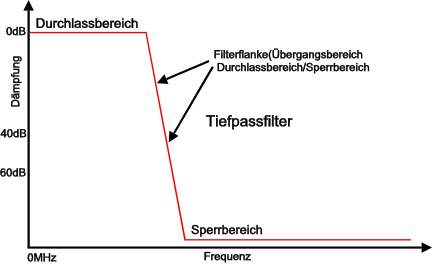

Durchlassbereich, Sperrbereich, gewünschte Sperrdämpfung, Anschlüsse;
Impedanz


---

ENGLISH

Low-pass filters (LPF) are suitable, for example, for effectively blocking out frequency ranges in communication and radio networks for bandwidth limitation in reception and transmission applications, suppression of interference signals, harmonic suppression in radio applications and much more.

The low-pass filters are manufactured to your specification and are housed in a compact metal housing with mounting bracket as standard. A high degree of shielding is achieved thanks to the special housing design.



Product features:
-high blocking attenuation 40dB, 70dB or according to your specification
-low transmission loss
-high return loss (high matching)
-Exact factory calibration
-high thermal and mechanical stability
- Wobble printout included
-Connectors according to customer specification (F, IEC, 3.5/12, N, SMA, BNC, TNC etc.)
-high degree of shielding due to a special housing construction
-compact metal housing with mounting bracket
-Impedance 50 or 75 ohms

The following data is required for an offer:
pass band, stop band, desired blocking attenuation, connections;
impedance
