Bandsperrfilter (Bandstop Filter)

Bandsperrfilter eignen sich z.B. zur Aussperrung eines oder mehrerer Frequenzbereiche in Kommunikations- und Funknetzen bzw. zur Unterdrückung unerwünschter Frequenzbereiche...

Die Bandsperren werden nach Ihrer Spezifikation gefertigt und sind standardmäßig in einem kompakten Metallgehäuse mit Montagehalter untergebracht. Durch die spezielle Gehäusekonstruktion wird ein hohes Schirmungsmaß erreicht.

Produktmerkmale:
-hohe Sperrdämpfung 40dB, 70dB oder nach Ihrer Vorgabe
-geringe Durchgangsdämpfung ca. 2dB
-hohe Rückflussdämpfung(hohe Anpassung)
-exakter Werksabgleich
-Wobbelausdruck im Lieferumfang
-hohe thermische und mechanische Stabilität
-Anschlüsse nach Kundenspezifikation (F, IEC, 3,5/12, N, SMA, BNC, TNC etc.)
-hohes Schirmungsmaß
-kompaktes Metallgehäuse mit Montagehalter
-Impedanz 50 oder 75 Ohm
-Einzelanfertigungen ohne Aufpreis

Für die Fertigung benötigen wir folgende Daten:

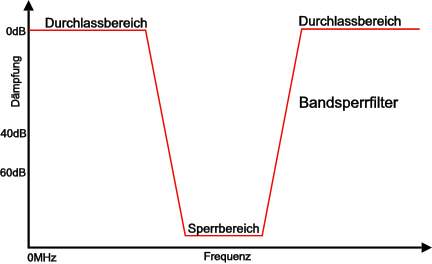

Durchlassbereich, Sperrbereich, Sperrdämpfung, Anschlüsse, Impedanz


---

ENGLISH

Band stop filter

Bandstop filters are suitable, for example, for blocking out one or more frequency ranges in communication and wireless networks or for suppressing unwanted frequency ranges...

Bandstop filters are manufactured to your specification and come standard in a compact metal housing with mounting bracket. A high degree of shielding is achieved thanks to the special housing design.

Product features:
-high blocking attenuation 40dB, 70dB or according to your specification
-low transmission loss approx. 2dB
-high return loss (high matching)
-Exact factory calibration
- Wobble printout included
-high thermal and mechanical stability
-Connectors according to customer specification (F, IEC, 3.5/12, N, SMA, BNC, TNC etc.)
-high degree of shielding
-compact metal housing with mounting bracket
-Impedance 50 or 75 ohms
- Custom-made products at no extra charge

For the production we need the following data:
Passband, Stopband, Reverse Attenuation, Connections, Impedance
